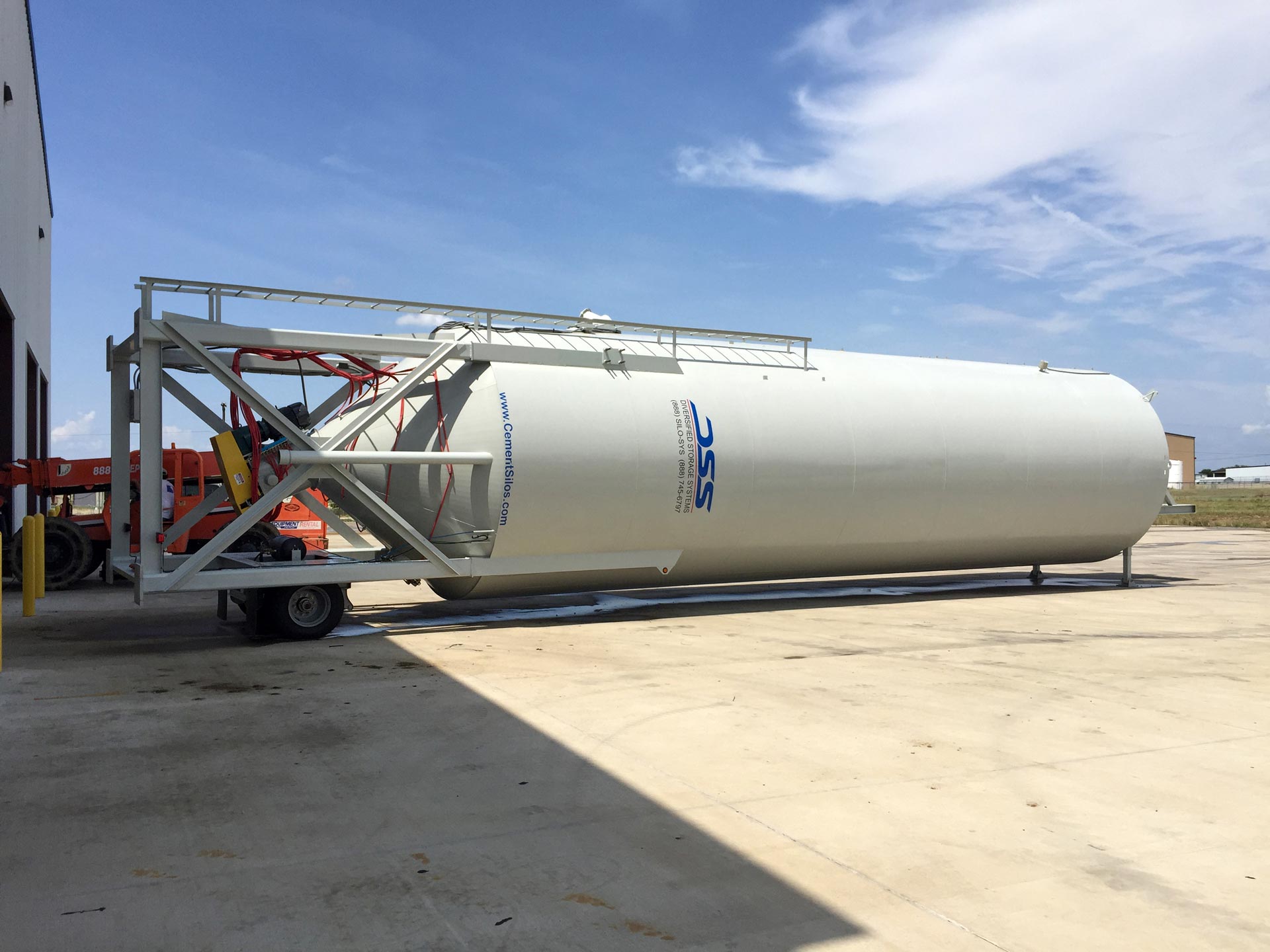

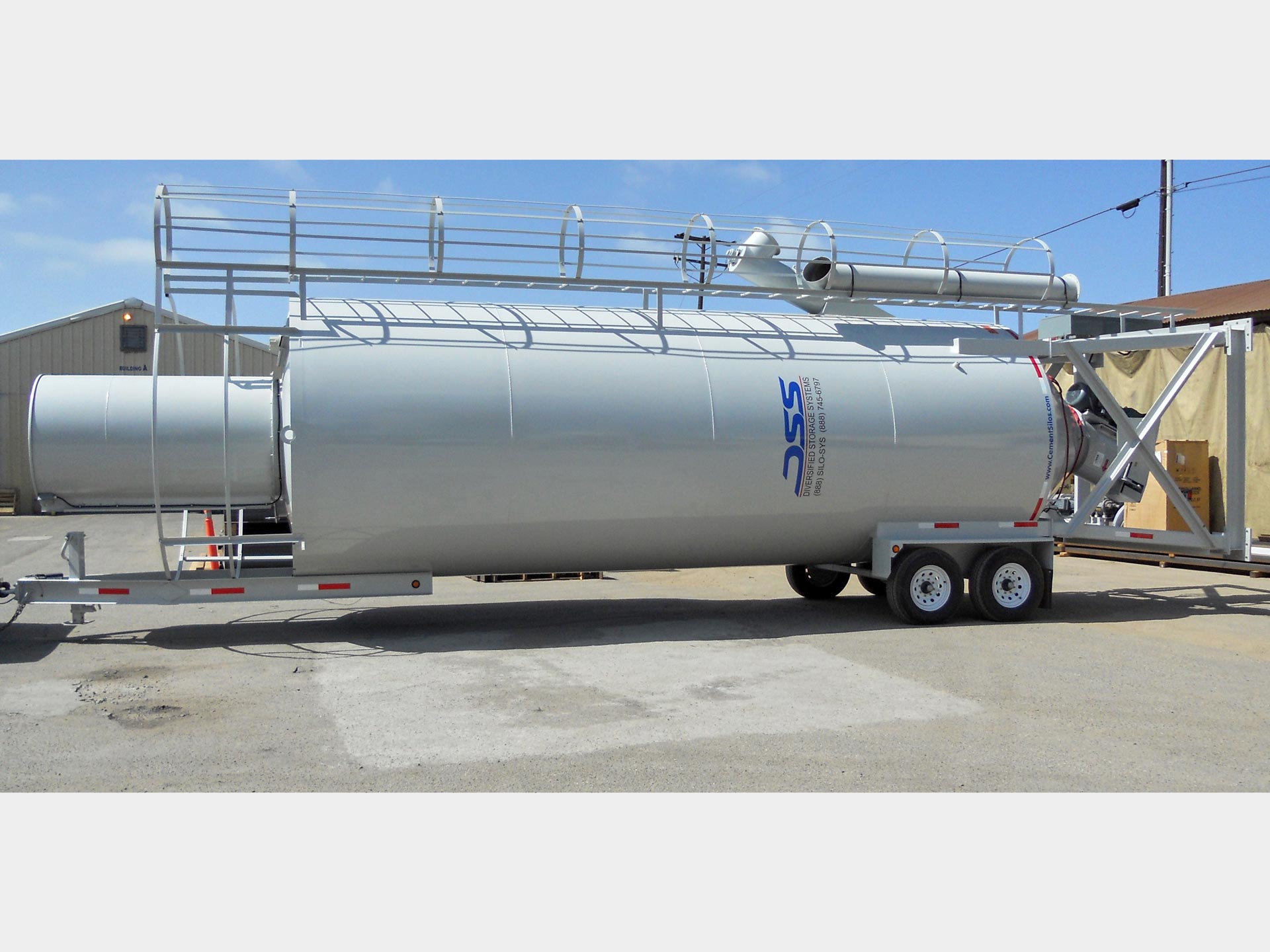

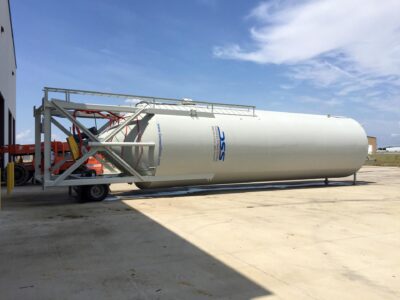

Positive Feed Silo (1400c.f.)

Our Positive Feed Silos are delivered fully assembled and come with a wide range of benefits designed to make your job as easy and efficient as possible. Using a built-in dual auger system, these silos operate by using a small auger to feed directly into the main delivery auger.

Positive Feed Silo Specifications

Standard features

All positive feed silos include the following features:

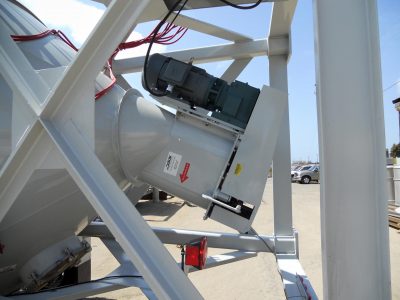

  • Internal 10” Auger 10hp 480v motor gear reduction.
  • Feed down auger, chain drive
  • WAM Shaker R03 dust collector with an electric shaker on a timer
  • WAM VCP Overpressure relief valve
  • 9 Oli VBI Fluidizers all connected to an aluminum manifold with individual control valves
  • 20” manway on top of the silo
  • High-level indicator with horn and light
  • Full ladder with safety cable system
  • Full upper railings
  • 20” pressure manway on cone
  • Heavy-duty support legs
  • 480v 100amp Allen Bradley electrical starter panel with all controls wired to the silo

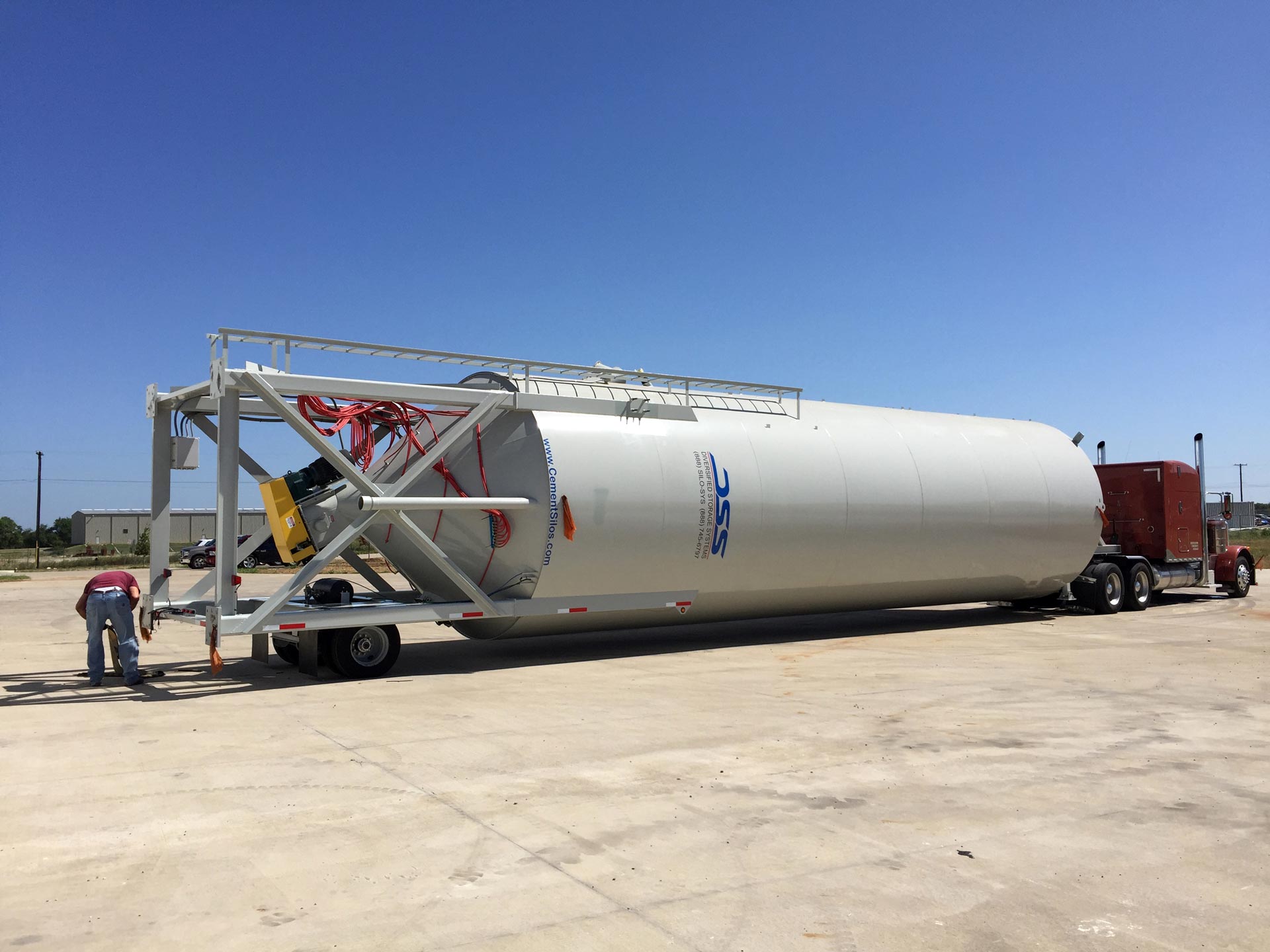

  • Pintel hitch trailer connection with electric brakes, running lights, two 16” 7K torflex axles
  • 8 lug wheels.
  • Prime and Painted DSS Grey

Optional additional features

  • Scale system
  • 12” auger
  • Variable speed drives
  • Pulse Jet dust collector from 1500-2200 cfm

Also available up to 4800c.f. capacity.

To learn which units are available for rent, visit our Resources section.

Ready to get started or want to know more?

Other custom applications are available – reach out to discuss your unique project specifications and learn how our team can help.
