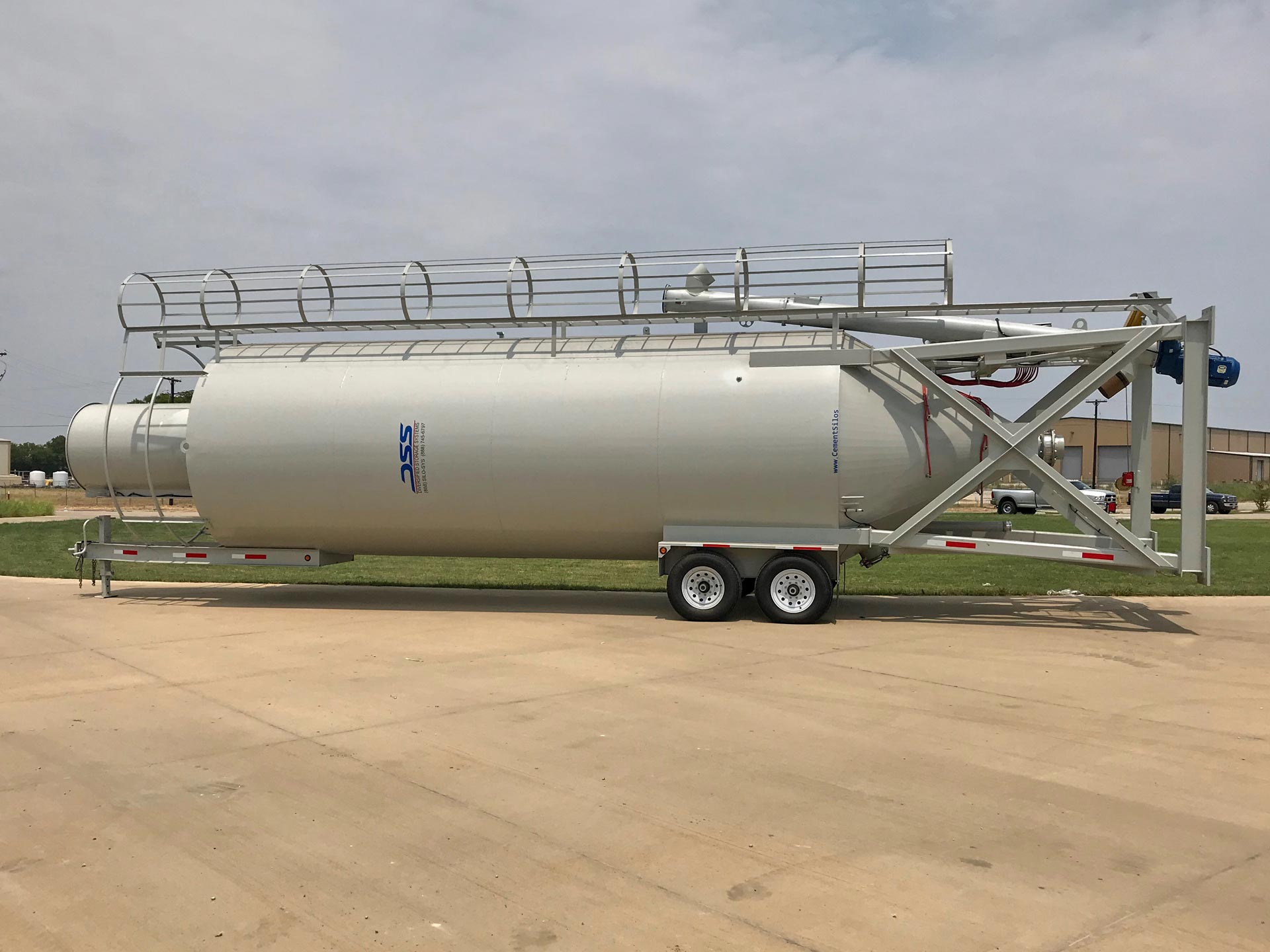

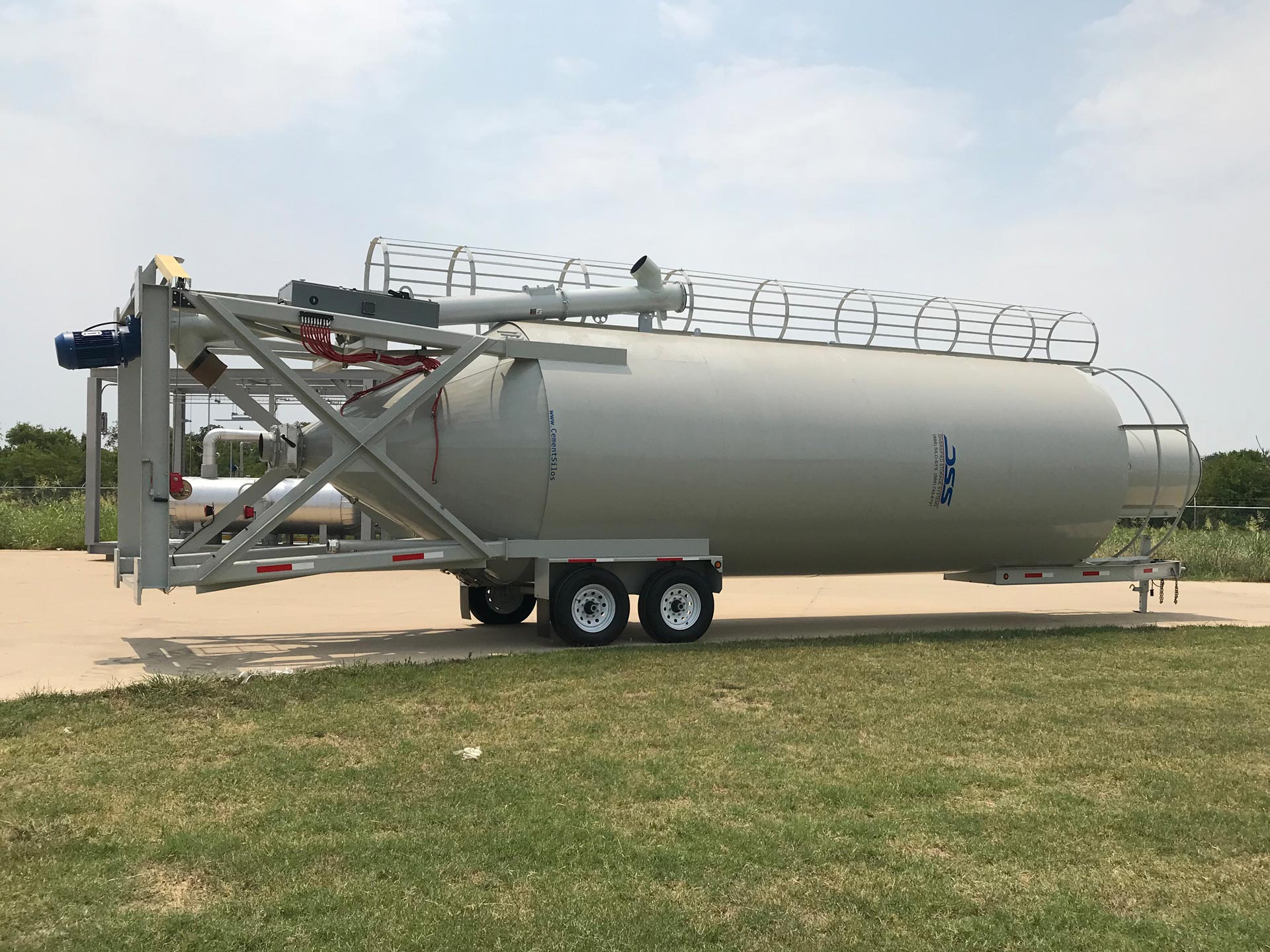

Portable Silo with Pivoting Auger (1400c.f.)

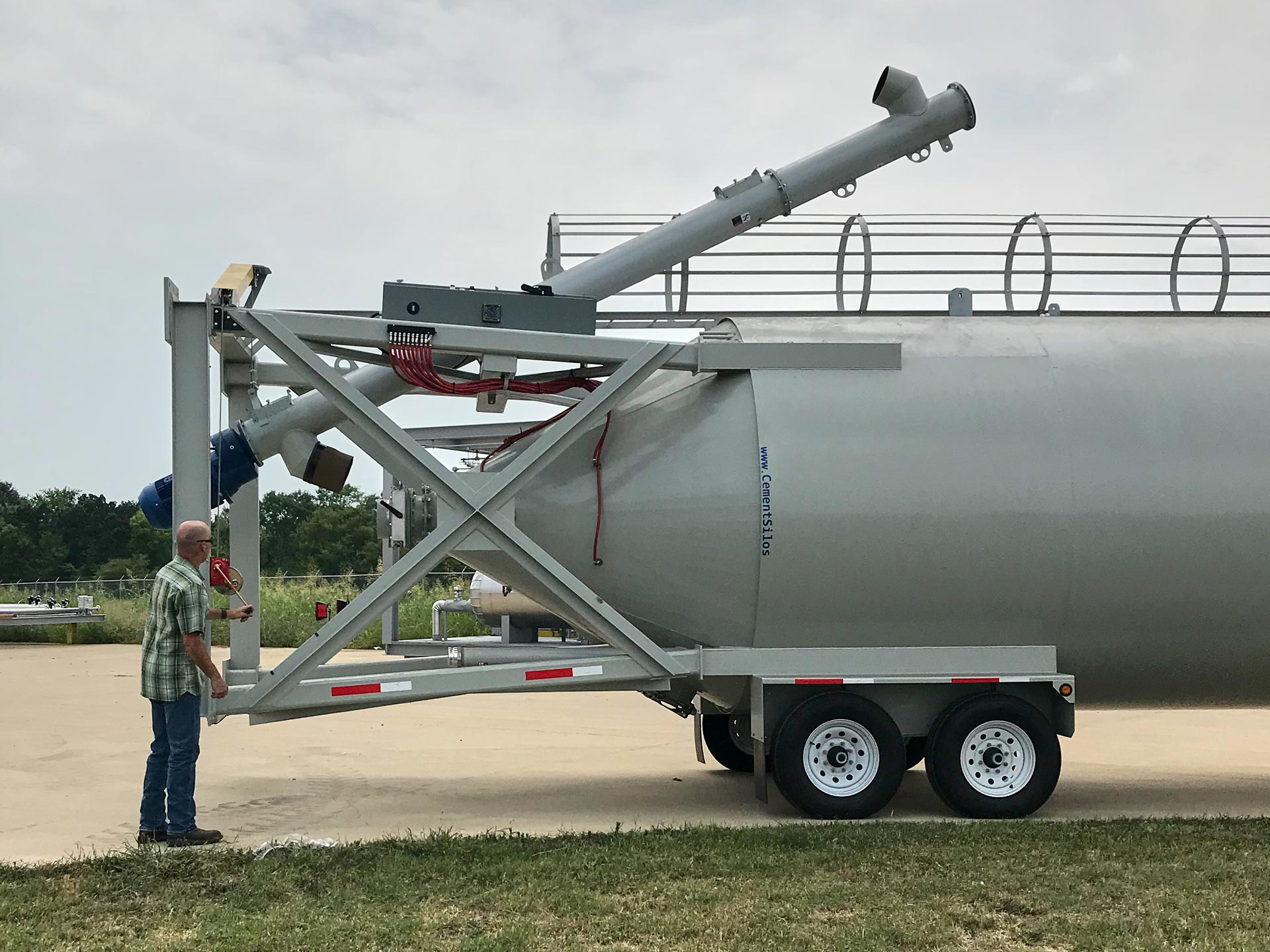

One of our newest designs, the 1400 Portable Silo has an attached external WAM ES auger that pivots both up and down, making transportation through your worksite seamless.

Like all of our silos, it comes fully assembled, so you can start utilizing it as soon as it arrives.

Pivoting Auger Specifications

Standard features

  • WAM 10” x 15 ES Auger 15hp 480v motor with direct drive gear reduction
  • 30 cfm capacity mounted on a pivot with hand winch
  • WAM Shaker R03 dust collector with an electric shaker on a timer
  • WAM VCP Overpressure relief valve
  • 9 Oli VBI Fluidizers connected to an aluminum manifold with individual control valves
  • 20” manway on top of the silo
  • High-level indicator with horn and light
  • Full ladder with safety cable system
  • Full upper railings
  • 20” pressure manway
  • Heavy-duty support legs
  • 480v 100amp Allen Bradley electrical starter panel with all controls wired to the silo
  • Pintel hitch trailer connection with electric brakes, running lights, two 7K torflex axles with 16” -8 lug wheels.
  • Primed and painted DSS Grey

Optional additional features

  • Scale system
  • 6”, 8” or 12” auger
  • Variable speed drives
  • Pulse Jet dust collectors from 1500-2200 cfm

To learn which units are available for rent, visit our Resources section.

Ready to get started or want to know more?

Other custom applications are available – reach out to discuss your unique project specifications and learn how our team can help.
