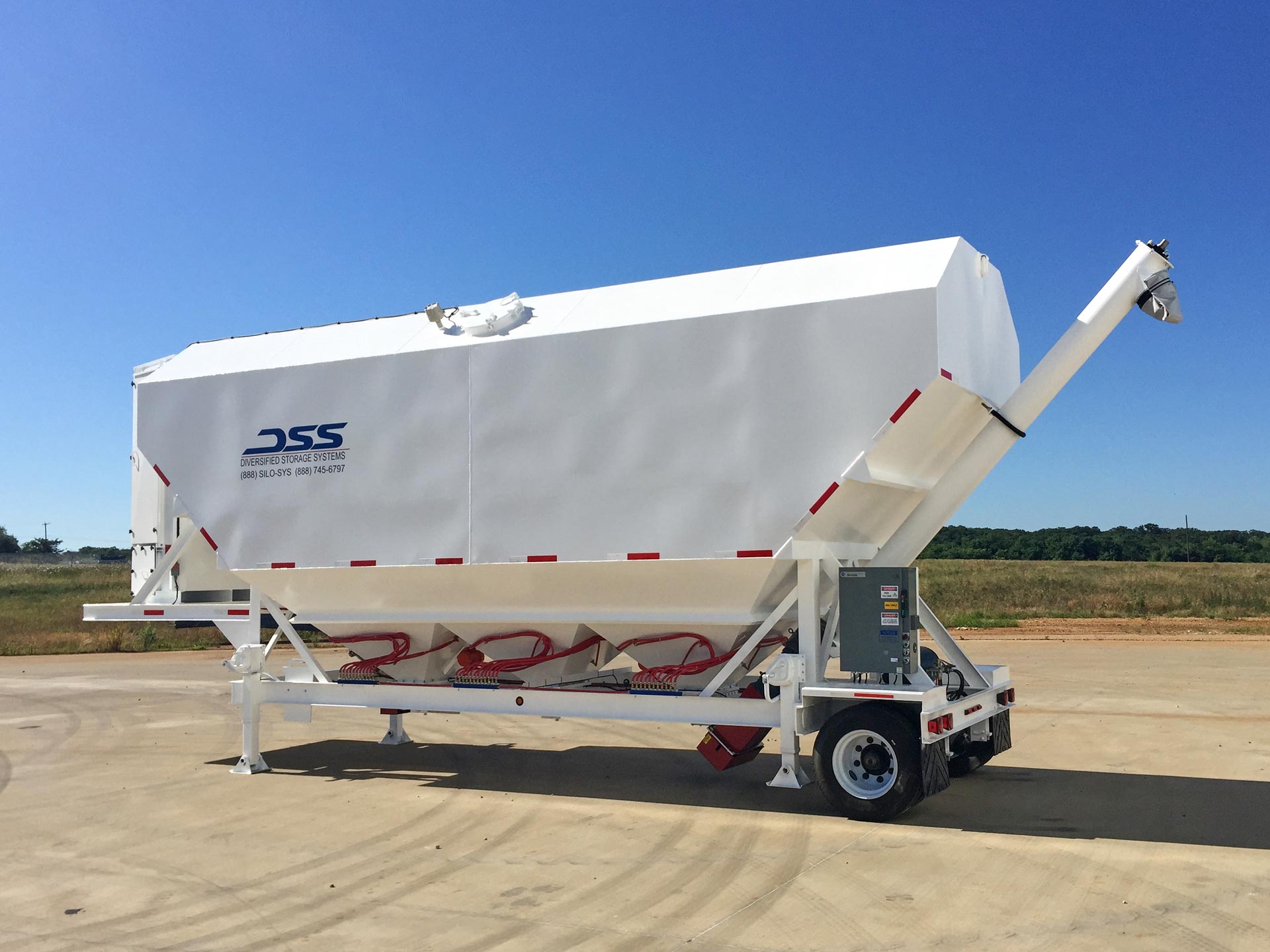

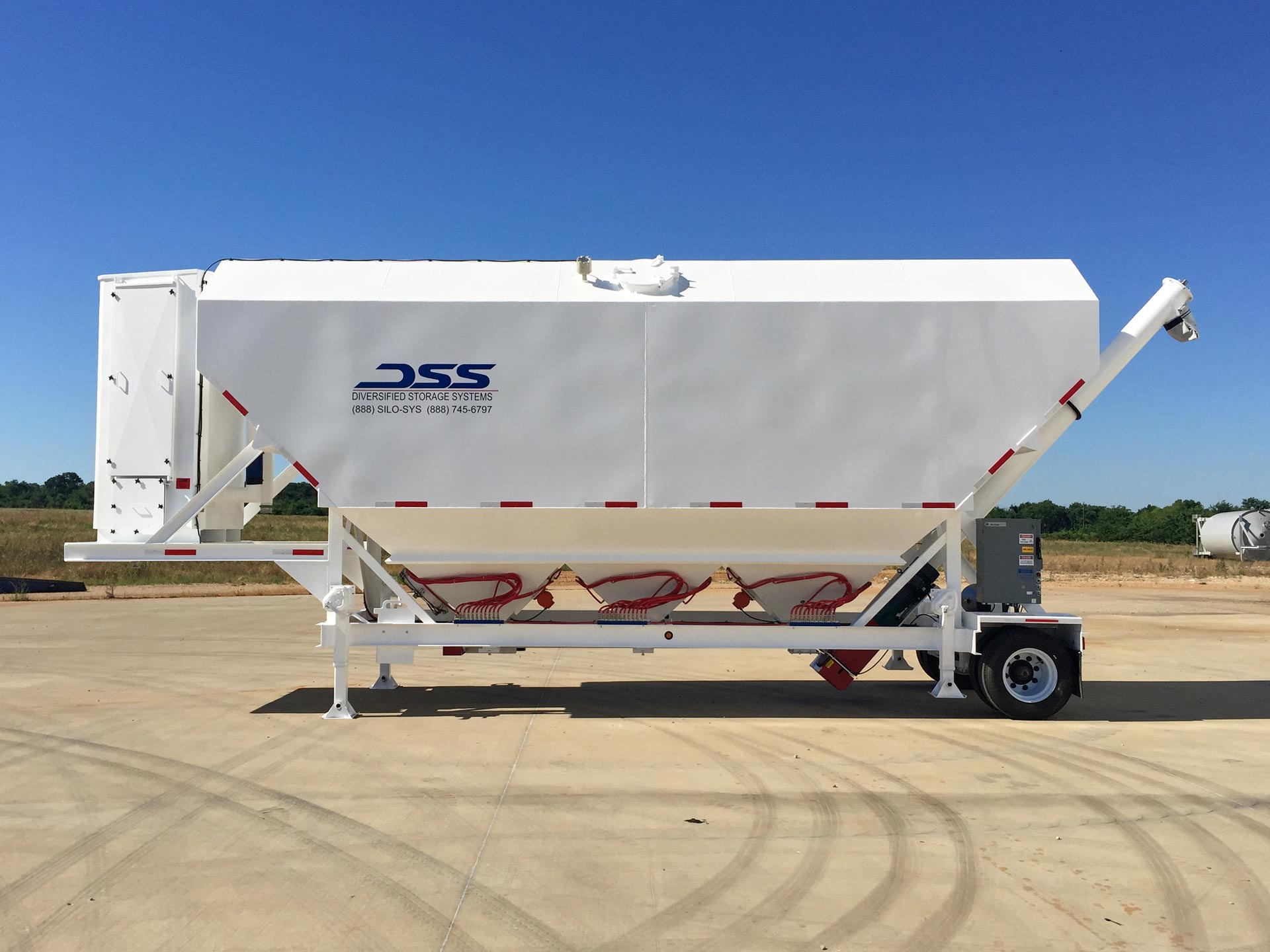

Portable Low-Profile Silos (1200c.f.) – Lo-Pro 300

Lo-Pro 300 horizontal portable silos boast a 1200c.f. capacity and are used across a wide spectrum of jobs, used to store dry powders including cement, fly ash, sand, guar, chemical powders, and more.

Lo-Pro 300 Specifications

Standard features

  • Silos are 8′-6″ wide x 13′-6″ tall, 35′-0″ overall length.
  • 10″x17′ discharge screw, 10Hp 3Ph motor and gear reduction, chain drive, lube block seal
  • 7”x12’ Curry over auger 5HP 3PH motor and gear reduction, chain drive, lube block seal
  • Low profile manual emergency slide gate
  • 32 OLIVBI air fluidizers with manifold and individual control valves

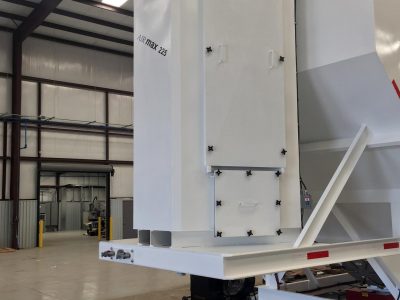

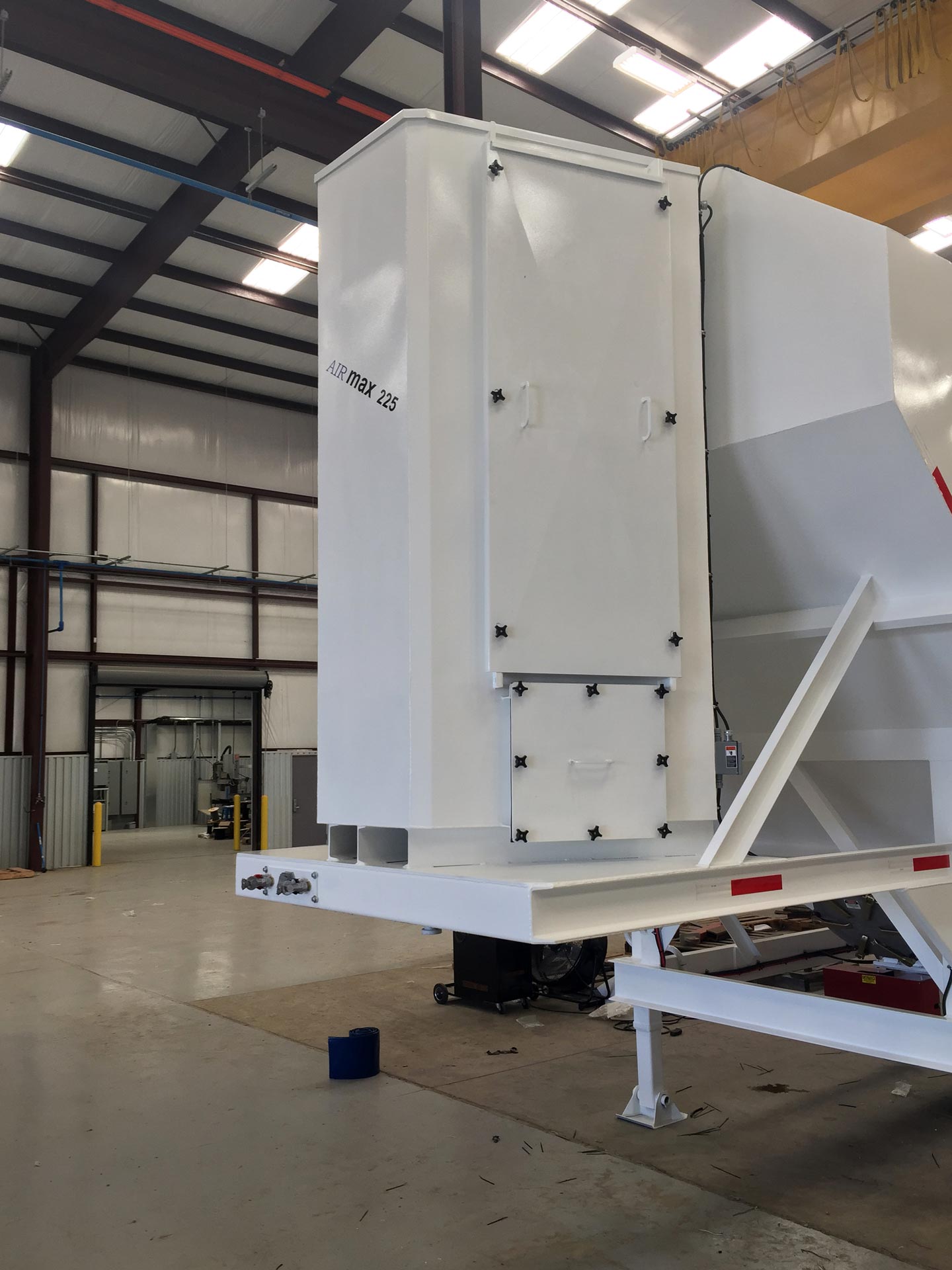

  • AirMax 225 Static Dust Collector with an electric vibrator
  • WAM VCP over the pressure relief valve
  • High-level indicator with horn and light
  • Two OLI MV 690 480v vibrators mounted on the cone with timer interlocked to auger

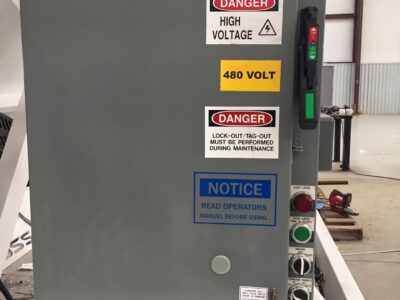

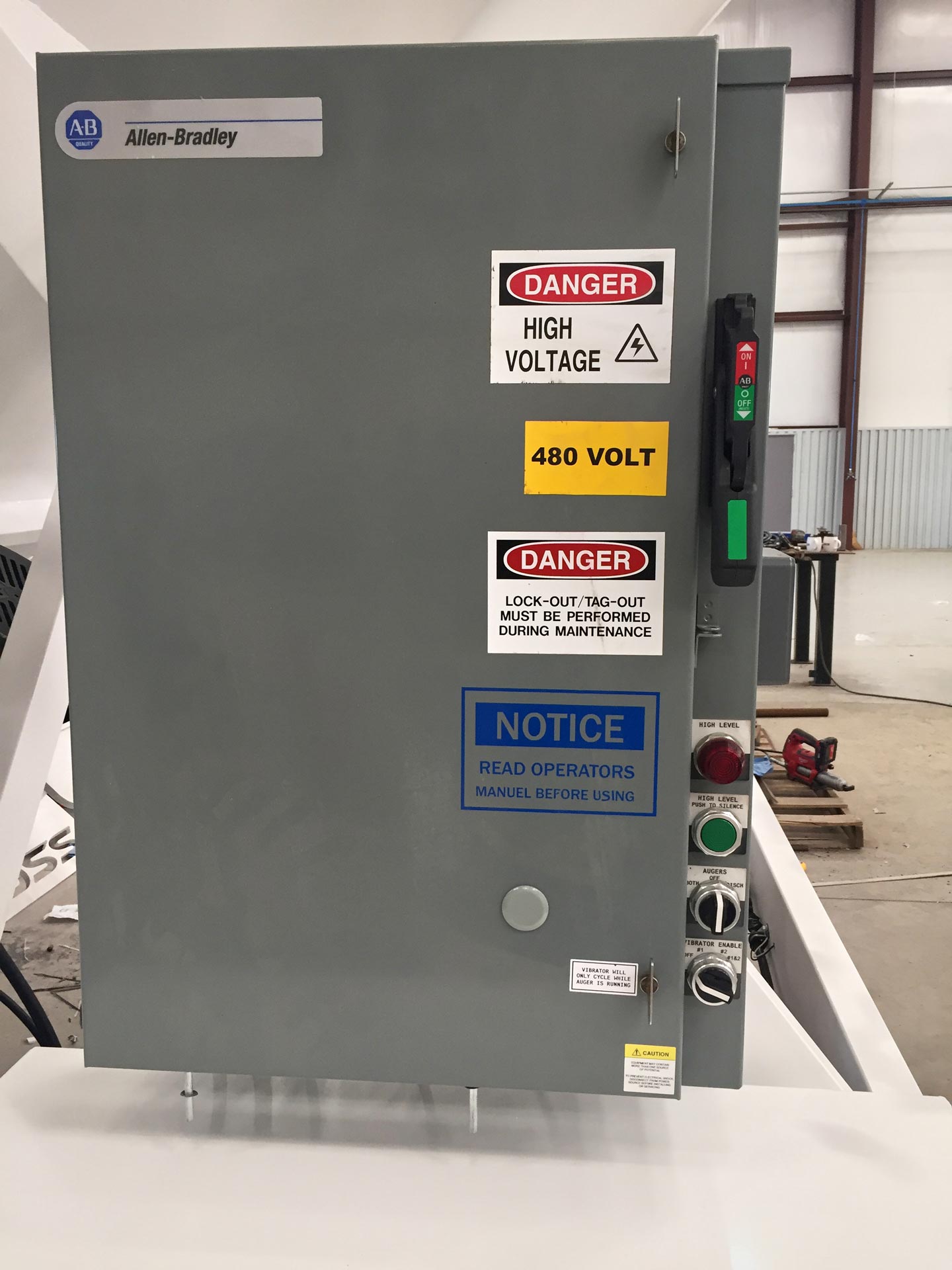

  • 480v 50amp Allen Bradley Electrical starter panel with all controls wired to the silo
  • 5th Wheel trailer connection with air brakes, running lights, 15K spring axle with dual wheels
  • Prime and painted DSS Grey

Optional additional features

  • Gas Hydraulic Drive
  • Variable Speed Drive
  • Scale system with batching program

To learn which units are available for rent, visit our Resources section.

Ready to purchase or want to know more?

Other custom applications are available – reach out to discuss your unique project specifications and learn how our team can help.
