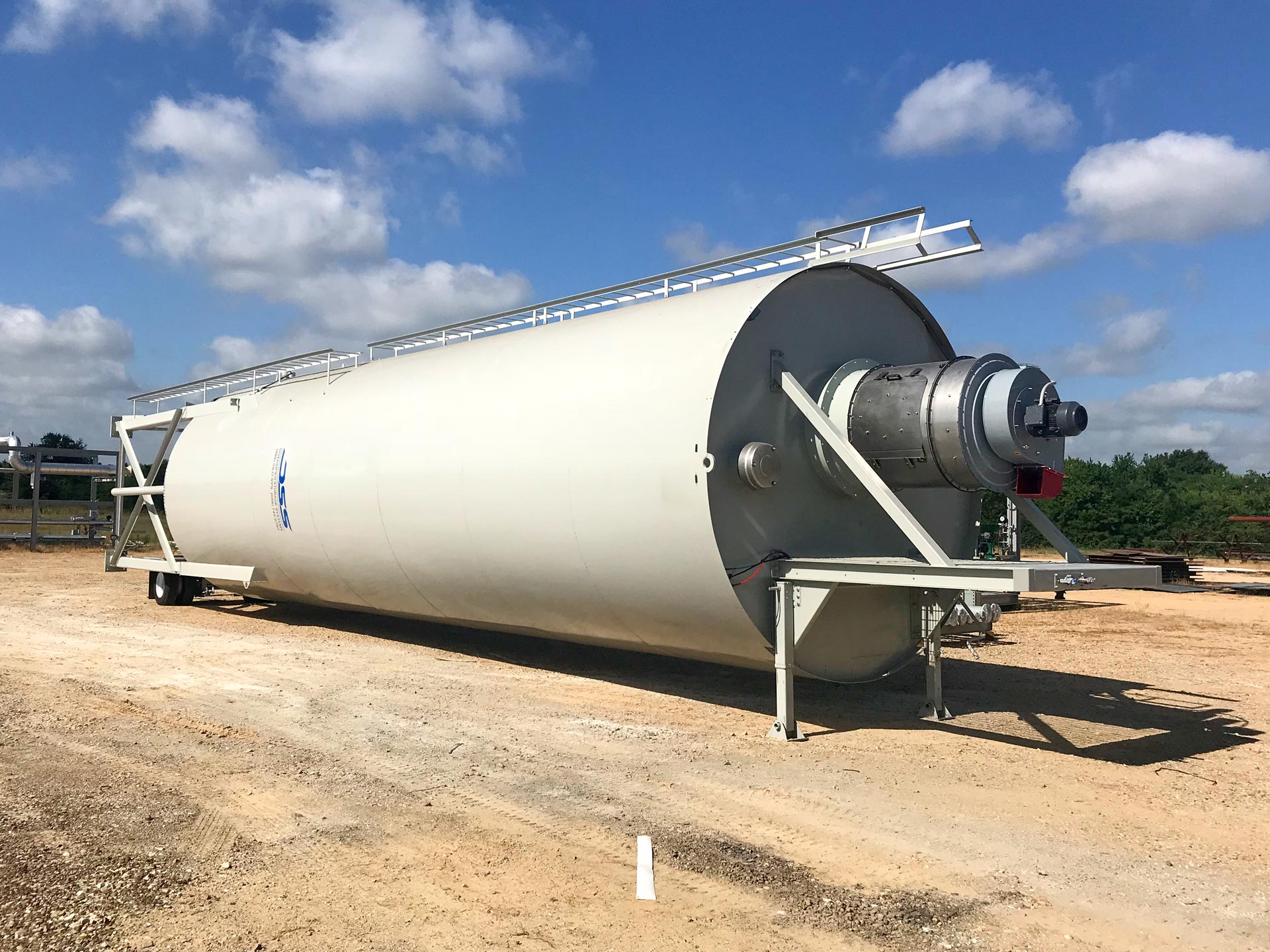

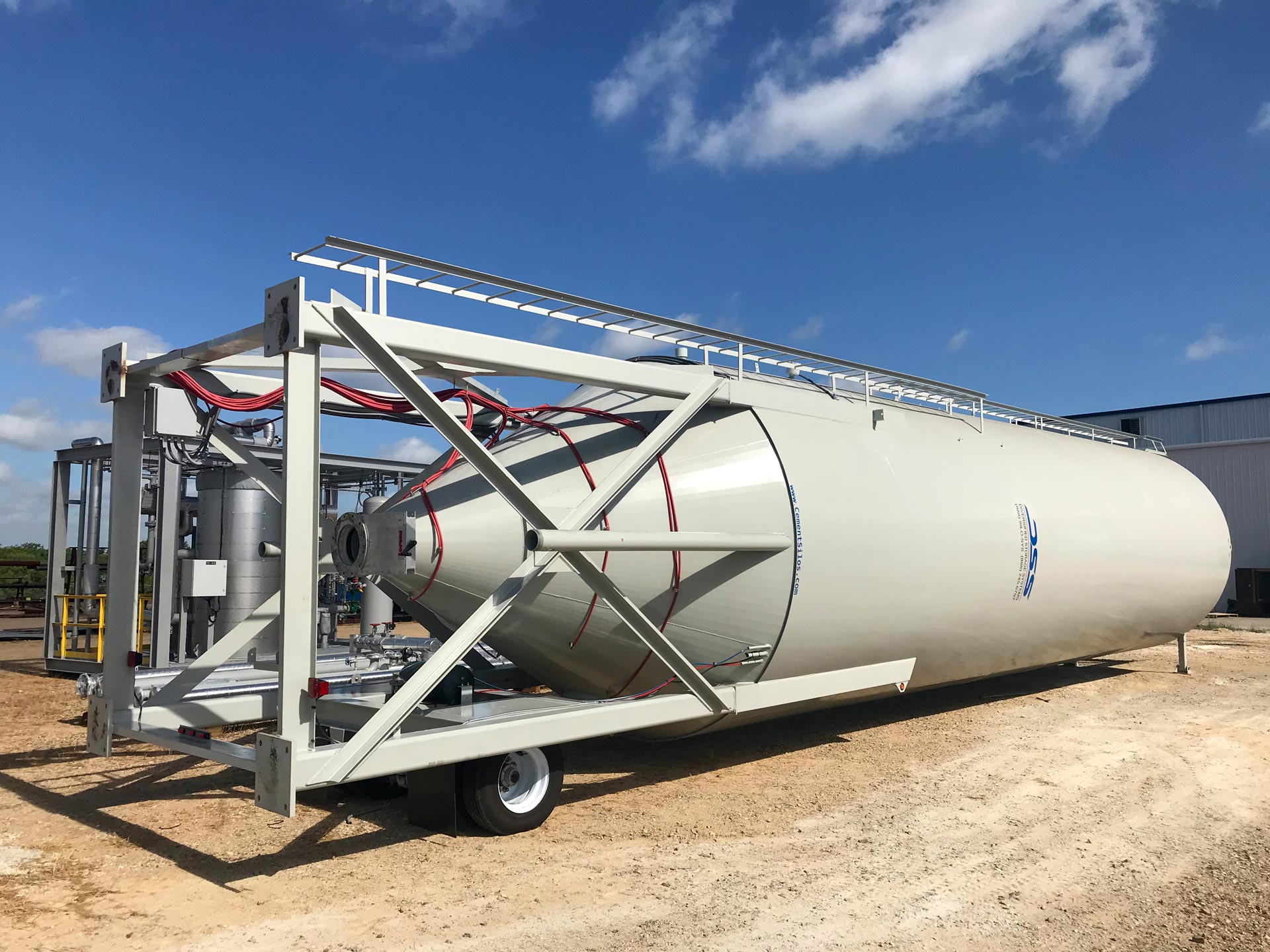

Portable Basic Silos (1400c.f. or 4800c.f.)

Portable basic silos offer 1400c.f. to 4800c.f. of capacity and can be set up in a variety of configurations in accordance with your distinct project requirements. When purchasing these silos, our team can customize them to fit your unique needs.

Portable Basic Silos Specifications

Standard features

  • 10” discharge with manual jam gate
  • Full ladder with railings
  • Static dust collector with an electric vibrator
  • 20” manway on top
  • Pressure relief valve
  • High-level indicator with horn and light
  • 20” pressure manway on lower cone
  • Air fluidizers on the cone with manifold
  • Trailer assembly with lights and brakes
  • Prime and painted DSS gray

Optional additional features

  • 7”, 12” or 14” discharge
  • Pulse-jet dust collectors 150-500sq.ft. of filtration with or without a fan
  • 7”, 10, & 12” dia. augers up to 50’ in length
  • Scale systems
  • Air actuated valves
  • Vane feeders
  • Live bottom feeds

To learn which units are available for rent, visit our Resources section.

Ready to purchase or want to know more?

Reach out to discuss your distinct project specifications and learn how our team can help.
