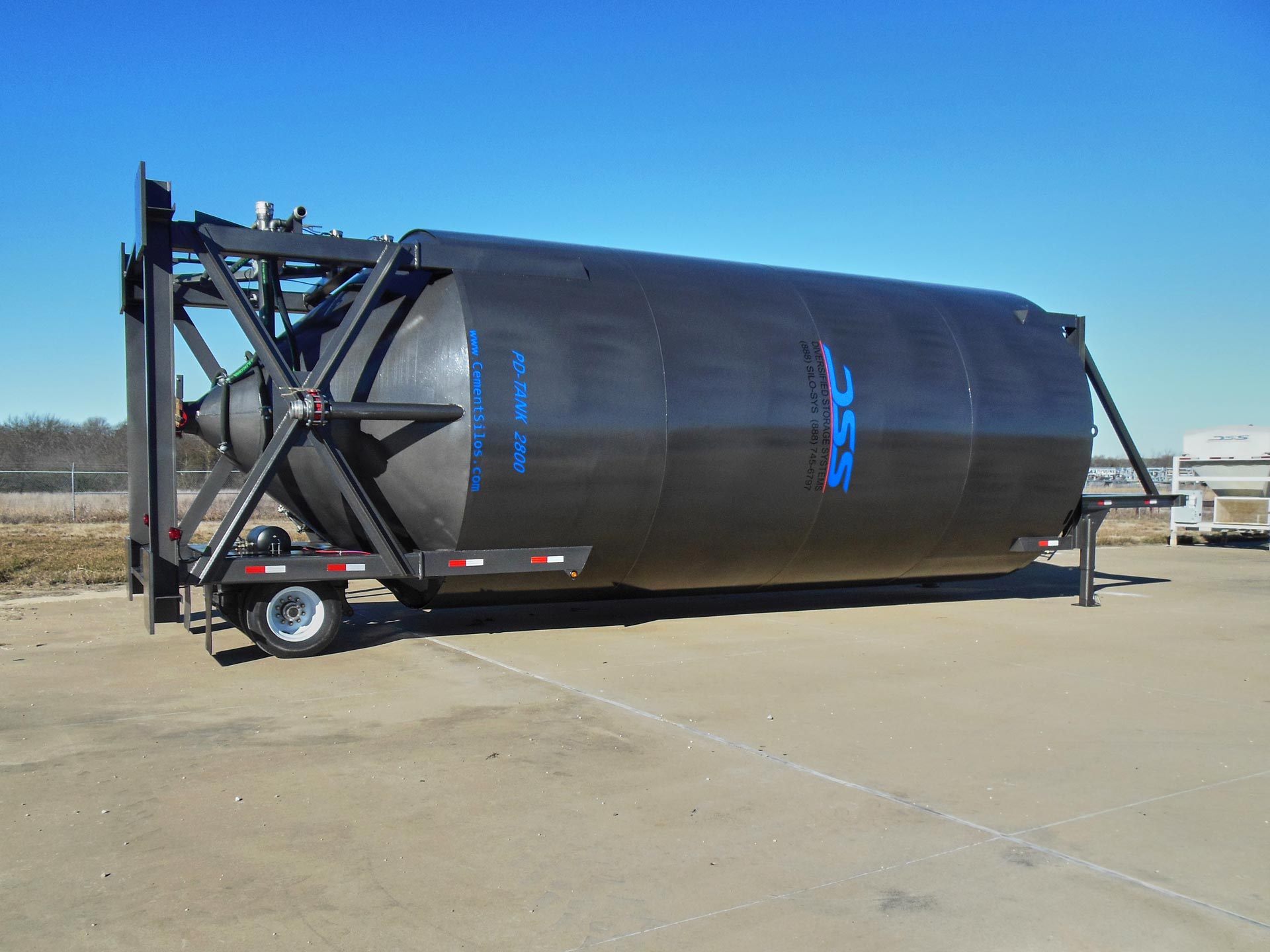

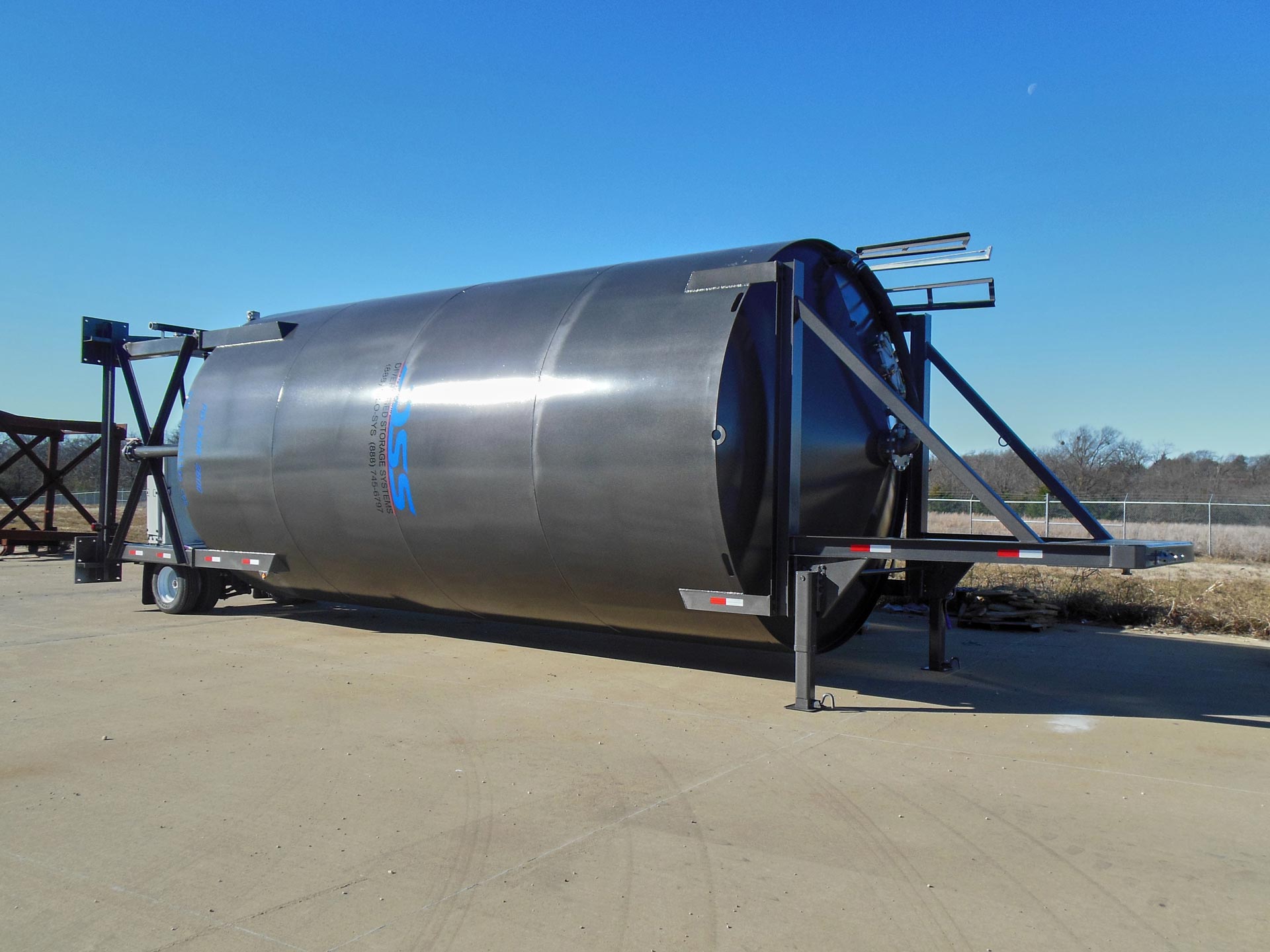

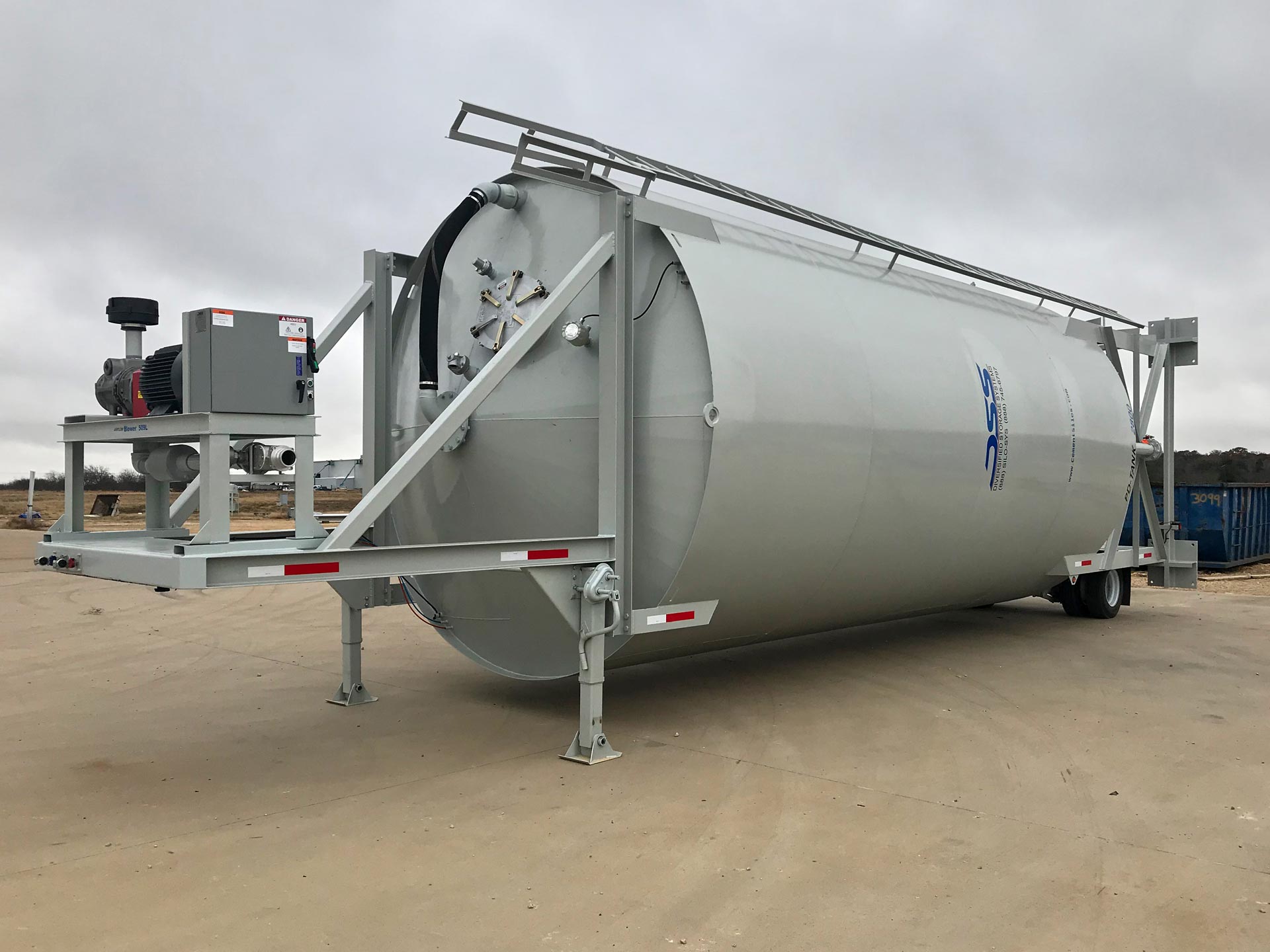

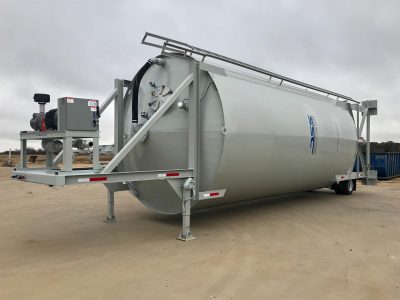

PD-Tank (2200c.f. or 2800c.f.)

The PD-Tank is a specially designed portable vertical pneumatic storage system for bulk powder products.

Innovative features include:

  • Pneumatic Discharge system 5” discharge with 5” butterfly valve
  • One valve operation to discharge, more practical than a guppy/pig
  • Stable height-to-width ratio, low ground pressure
  • Two 5” fill/vent lines with butterfly valves
  • One 4” vent line with a butterfly valve.
  • Integrated vent pipe to discharge pipe (no need for two hookup hoses)
  • 3” air inlet manifold with 2” control air valves
  • High level indicator with horn and light
  • Full ladder with safety cable system
  • Easy cleanout
  • Tank and Line air pressure gauges
  • 3psi over the pressure relief valve
  • 1psi vacuum relief valve
  • 5th wheel trailer design with air brakes, running lights, 22K axel
  • Prime and painted DSS Grey

PD-Tank Specifications

Silo Capacity (c.f.)

Silo Capacity (Cement)
Operating Pressure
Bottom Aeration
Discharge Pipe
Fill Pipe
Vent Pipe
Gravity Secondary Discharge
Top Manway
Bottom Manway
High-Level Indicator
Low Level Indicator
Standard Operating Pressure
Over Pressure Relief Settings
Pressure Gauges (2)

2200c.f.

88 – 94 tons
13.5 psig
HV Flow-Cones (6)
5″ Sch. 40
5″ Sch. 40
4″ Sch. 40
10″ w/ Butterfly Valve
20″ Press. Dome Lid
20″ Press. Dome Lid
Paddle Style
Optional
10 – 12 PSI
15 PSI
1 – 30 PSI

2800c.f.

125 tons
13.5 psig
HV Flow-Cones (6)
5″ Sch. 40
5″ Sch. 40
4″ Sch. 40
10″ w/ Butterfly Valve
20″ Press. Dome Lid
20″ Press. Dome Lid
Paddle Style
Optional
10 – 12 PSI
15 PSI
1 – 30 PSI

To learn which units are available for rent, visit our Resources section.

Ready to purchase or want to know more?

Reach out to discuss your distinct project specifications and learn how our team can help.
